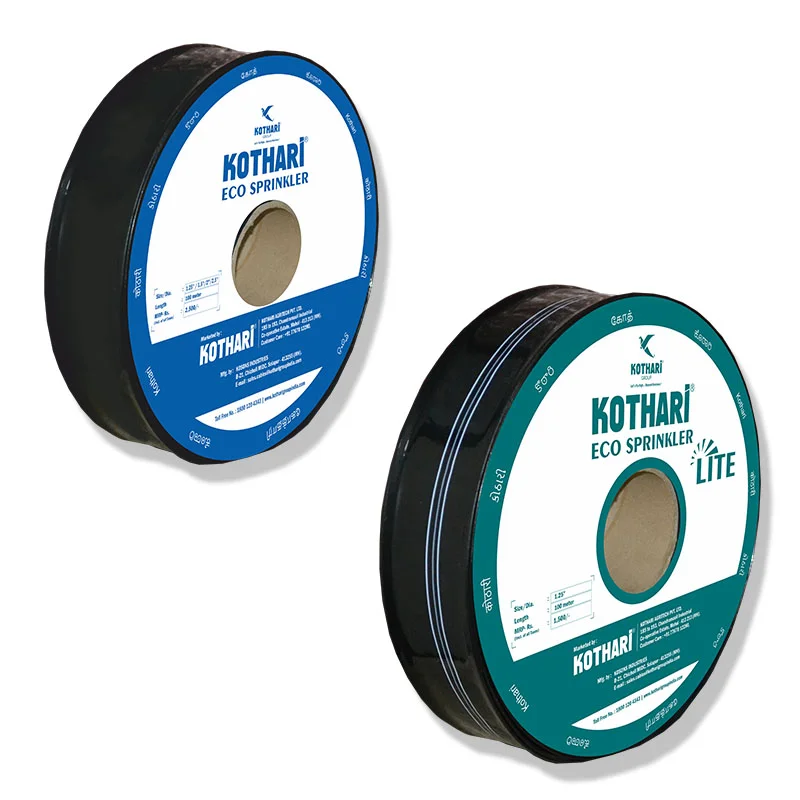

K-Eco Sprinkler

₹4,000.00

Operative guidelines :

  • Nominal operating pressure of 1 to 1.5kg/cm2.
  • For first use, allow the water to pass through the eco pipe end & then use it by closing the end cap.
  • Always use the air valve on sub main & NRV in the system.
Clear
Compare
Add to wishlist
SKU: N/A Category:
Description

K-Eco Pipe Specifications

S. N. Parameters 20mm K-Eco Pipe 32mm K-Eco Pipe 40mm K-Eco Lite 40mm K-Eco Pipe 63mm K-Eco Pipe
1 Thickness (micron) 200 250 250 350 350
2 Operating pressure (kg/cm²) 1 to 1.5 1 to 1.5 1 to 1.5 1 to 1.5 1 to 1.5
3 Maximum length recommended (mtr) 40 60 80 80 100
4 Maximum spacing recommended (mtr) 2.5 to 3 3 to 4 3.5 to 4.5 3.5 to 4.5 5 to 6
5 Flow of one line at 1 kg/cm² 2000 lph 4800 lph 7200 lph 7200 lph 23000 lph
6 Flow of one line at 1.5 kg/cm² 2500 lph 6400 lph 7800 lph 7800 lph 25300 lph
Additional information
Color Magenta with brown colour designing , Brown with Yellow Designing , Orange with yellow designing , Yellow with black designing , orange with Hanuman ji face , Green with God face , Green tone , Blue tone , Canvasite Green
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “K-Eco Sprinkler”

Your email address will not be published. Required fields are marked *

Attachment

pdf

Download
Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Features & Benefits
  • Precision design: Flat, flexible pipe with predefined laser holes for accurate spacing.
  • Uniform coverage: Unique spray pattern ensures even wetting.
  • User-friendly: Easy to set up and operate.
  • Quick irrigation: Fast and simple to shift between areas.
  • Filter-free operation: Performs well without filter, even with low-quality water
Applications

Ideal for watering short-term crops efficiently.

Related products

Hot
Select options
Quick view
Compare
Add to wishlist

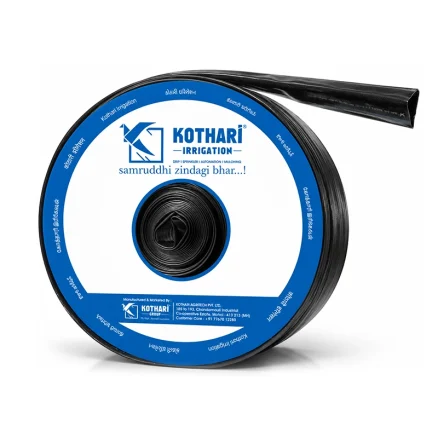

K-Flex Submain Pipes
