| Type & Size (OD: Outer Dia, DN: Nominal Dia) |
Breaking Load (kgf) |
Safe Pulling Load with Chain Pulley (kgf) |
Safe Allowable Hydrostatic Pressure (kg/cm²) |
Safe Total Pump Delivery Head (mtr) |
Screen Color |
|---|---|---|---|---|---|
| OD: 33 mm (1″) | DN: 25 mm | |||||
| V4-12.5 | 1000 | 750 | 15 | 75 | ORANGE |
| V4-15 | 1200 | 900 | 20 | 100 | PURPLE |
| V4-16 | 1300 | 950 | 25 | 125 | GREEN |
| Standard | 1500 | 1100 | 30 | 150 | RED |
| OD: 42 mm (1 1/4″) | DN: 32 mm | |||||
| V4-12.5 | 2000 | 1500 | 15 | 75 | ORANGE |
| V4-15 | 2300 | 1900 | 20 | 100 | PURPLE |
| Crystal | 1800 | 1500 | 20 | 100 | GREEN |
| Standard | 2800 | 2100 | 30 | 150 | RED |
| Heavy | 3200 | 2500 | 35 | 175 | BLUE |
| OD: 48 mm (1.5″) | DN: 40 mm | |||||
| V4-15 | 2000 | 1500 | 20 | 100 | PURPLE |
| Crystal | 2500 | 1700 | 24 | 120 | GREEN |
| Standard | 2950 | 2100 | 30 | 150 | RED |
| Heavy | 3300 | 2500 | 36 | 180 | BLUE |
| OD: 60 mm (2″) | DN: 50 mm | |||||
| Medium | 2450 | 1700 | 18 | 90 | ORANGE |
| Standard | 3300 | 2400 | 24 | 120 | RED |
| Standard Plus | 3750 | 2700 | 30 | 150 | GREEN |
| Heavy | 4050 | 3000 | 36 | 180 | DARK BROWN |
| Super Heavy | 4600 | 3500 | 40 | 200 | BLACK |
| OD: 75 mm | DN: 65 mm | |||||
| Medium | 3250 | 2600 | 20 | 100 | ORANGE |
| Standard | 4050 | 2700 | 30 | 150 | RED |
| Standard Plus | 4350 | 3100 | 35 | 175 | GREEN |
| Heavy | 4850 | 3500 | 40 | 200 | BLUE |
| OD: 88 mm | DN: 80 mm | |||||
| Medium | 4450 | 3200 | 25 | 125 | ORANGE |
| Standard | 5050 | 3700 | 30 | 150 | RED |
| Heavy | 5900 | 4500 | 36 | 180 | BLUE |
| OD: 113 mm | DN: 100 mm | |||||
| Medium & Standard | 6000 | 4300 | 30 | 150 | ORANGE |
| Heavy | 6600 | 4800 | 36 | 180 | RED |
| Super Heavy | 7300 | 5300 | 40 | 200 | BLUE |
Hot
Column Pipes
₹4,000.00
Available Sizes: Available sizes : 1″ to to 4″
Description
Additional information
| Color | Magenta with brown colour designing , Brown with Yellow Designing , Orange with yellow designing , Yellow with black designing , orange with Hanuman ji face , Green with God face , Green tone , Blue tone , Canvasite Green |
|---|
Reviews (0)
Attachment
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Features & Benefits

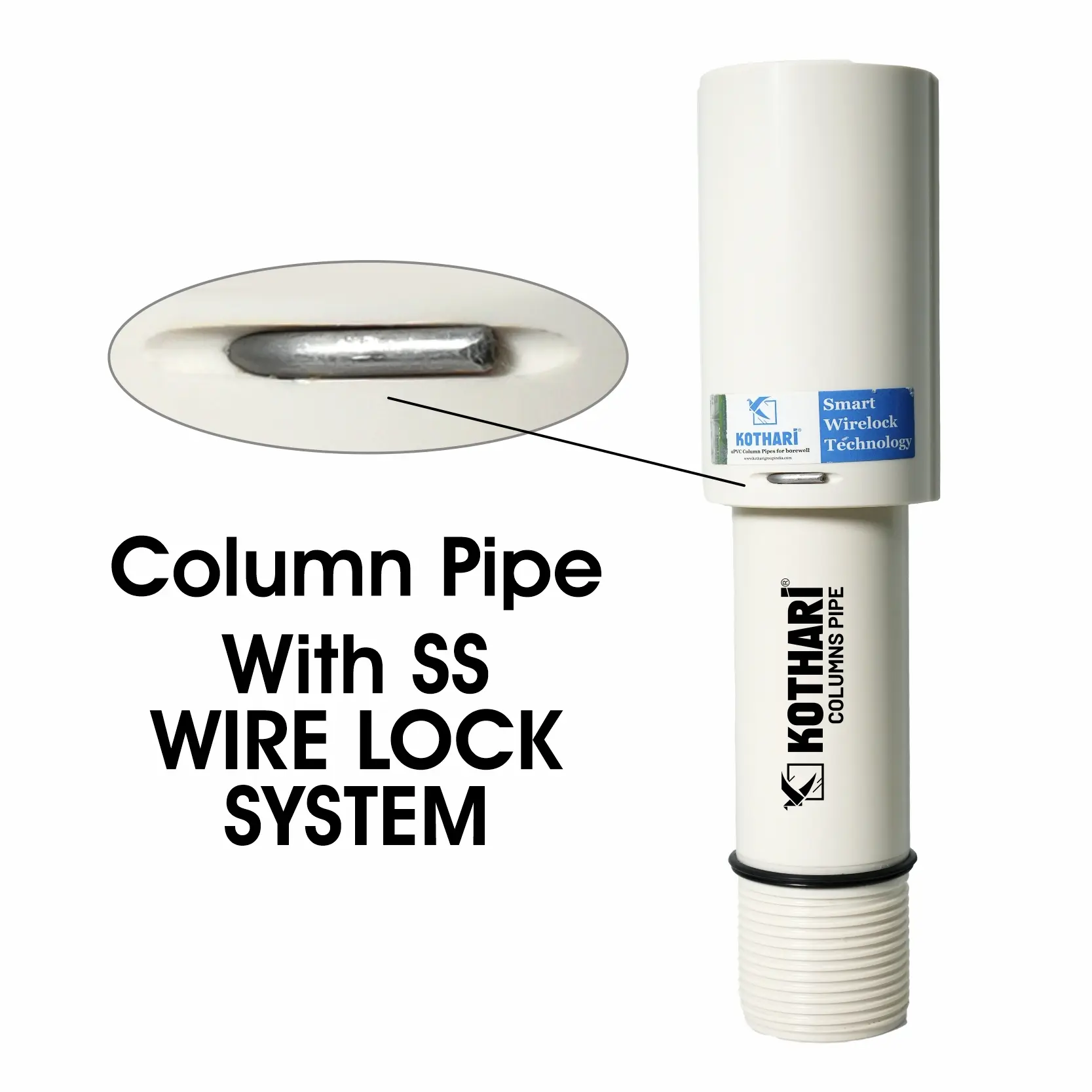

- Modern Technology: India’s First Impact Sustaining Lock System. This system prevents the shortage of the UPVC column pipe from the UPVC Coupler. The Locking System absorbs torque during pump startup and shutdown.
- Lead & Heavy Metal-Free: Ensures that the water is transported safely and without any harmful toxins and contamination.
- Special uPVC Compound: Boosts durability, fights corrosion, and extends the lifespan of the pipes.
- Tested for Durability: Ensures efficient performance under extreme conditions.
- Annealed Pipes: Enhances strength and flexibility, making them more resistant to impacts.
- 100% Hygienic & Safe: Specifically designed for drinking water use, ensuring that it remains pure and safe for consumption.
- ISLS LOCK SYSTEM : India’s First Unique impact
Sustaining Locking System.
Applications
- Ideal for borewell water extraction for both commercial and domestic purposes.
- Reliable for groundwater transportation, supporting irrigation and domestic water supply and management needs.
