| DIMENSIONS OF ‘RS’ – RIBBED SCREEN PIPES (SLOTTED) – CONFORMING TO IS: 12818 Slot width: 0.2 mm |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Diameter (DN) | Size (inch) | Mean Outside Diameter of Pipe (mm) | Outside Diameter of Pipe at Any Point (mm) | Mean Outside Diameter Over Connection (mm) | Wall Thickness ‘S’ (mm) | Material Code | Std. Pipe Length (meter) | |||
| Min. | Max. | Min. | Max. | Max. | Min. | Max. | ||||
| 40 | 1.1/2″ | 52.0 | 52.2 | 51.9 | 52.3 | 56 | 3.5 | 4.0 | 3071 | 1.82 |
| 40 | 1.1/2″ | 52.0 | 52.2 | 51.9 | 52.3 | 56 | 3.5 | 4.0 | 3070 | 3 |
| 50 | 2″ | 64.0 | 64.2 | 63.9 | 64.3 | 69 | 4.0 | 4.6 | 3073 | 1.82 |
| 50 | 2″ | 64.0 | 64.2 | 63.9 | 64.3 | 69 | 4.0 | 4.6 | 3072 | 3 |
| 80 | 3″ | 92.0 | 92.3 | 91.8 | 92.4 | 98 | 4.0 | 4.6 | 3074 | 3 |
Hot

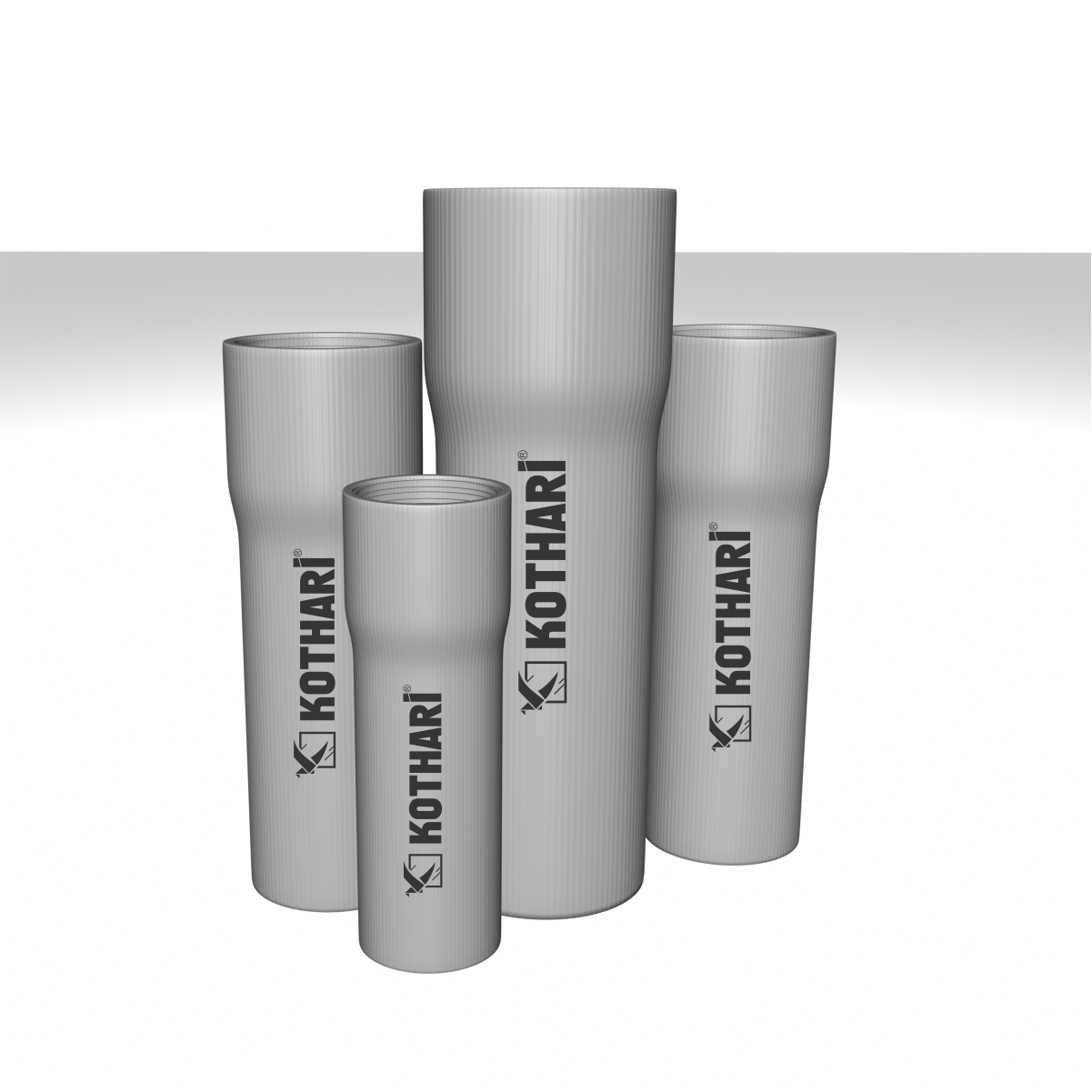

Ribbed Casing Pipe
Specifications:
Special PVC-U compound.
Diameters 40mm to 200m OD, as well as in straight bars.
Compression Class: 450 N and 750 N
Suitable for well depth upto 80 meters.
Certificate: IS:12818
Description
Additional information
| Color | Magenta with brown colour designing , Brown with Yellow Designing , Orange with yellow designing , Yellow with black designing , orange with Hanuman ji face , Green with God face , Green tone , Blue tone , Canvasite Green |
|---|
Reviews (0)
Attachment
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Features & Benefits
- High strength material: Provides durability and is specially designed to withstand demanding borewell conditions.
- Light-weight: Simplifies transport and installation, including at remote or difficult-to-access locations.
- Durable: Rigid and corrosion resistant, even in varying water qualities.
- Leak-proof: Threaded joints guarantee reliable connections
Applications
Transportation of hard, salty, sandy, or chemically aggressive water.
