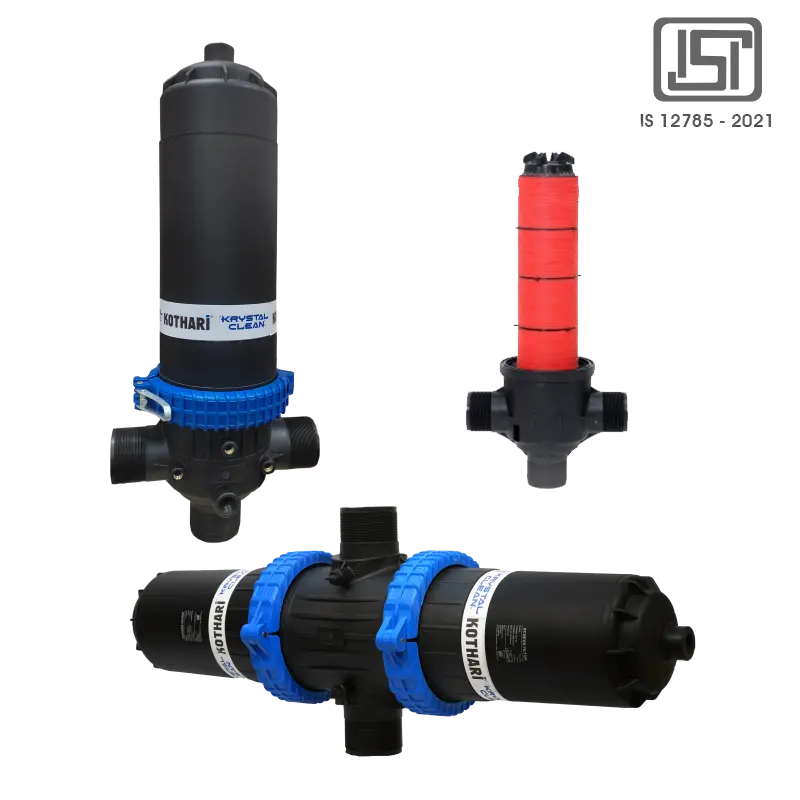

Disc Filter & Twin Disc Filter

₹4,000.00

Available Sizes: Regular filter available in 2″, 2.5″ & 3 models from 25 to 50 m3/hr capacity.

Clear
Compare
Add to wishlist
SKU: N/A Category:
Description

Technical Specifications :

Specifications 2″ Regular 2.5″ Regular 3″ Regular 3″ Twin 4″ Twin 4″ Twin
Specifications Inlet / Outlet 2″ (50mm) 2.5″ (65mm) 3″ (80mm) 3″ (80mm) 4″ (100mm) 4″ (100mm)
Range of flow rate, m³/hr 22-28 38-46 45-55 46-60 60-80 80-100
Nominal flow rate, m³/hr 25 40 50 50 70 90
Filtration surface area, cm² 878 1193 1690 1756 2380 3380
Material of construction Reinforced polypropylene Reinforced polypropylene Reinforced polypropylene Reinforced polypropylene Reinforced polypropylene Reinforced polypropylene
Material of disc Polypropylene discs Polypropylene discs Polypropylene discs Polypropylene discs Polypropylene discs Polypropylene discs
Available mesh 120 120 120 120 120 120
Additional information
Color Magenta with brown colour designing , Brown with Yellow Designing , Orange with yellow designing , Yellow with black designing , orange with Hanuman ji face , Green with God face , Green tone , Blue tone , Canvasite Green
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Disc Filter & Twin Disc Filter”

Your email address will not be published. Required fields are marked *

Attachment

pdf

Download
Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Features & Benefits
  • Disc with grooves technology: Guarantees fine filtration especially for suspended solids and organic matter
  • Spiral flow arrangement: Prolongs the flushing intervals by keeping dirt away from the filter surface.
  • Optimized Flow Design: Disc element designed for outside-to-inside flow for enhanced filtration.
  • Compact and robust design: Space-saving yet highly durable.
  • Easy to setup: Quick action toggle clamp for opening
  • Minimal maintenance: Easy opening of disc for cleaning
  • Efficient Drainage: Equipped with a larger drain port and a 3/4’’ drain valve for easy cleaning
  • High Filtration Efficiency: Capable of filtering up to 130 microns, ensuring clean and clear water.
Applications
  • Used as secondary filtration for open field sources like rivers, lakes, farm ponds, open wells & storage tanks.
  •  Preferred for micro irrigation on wells for small fields with low algae in the water.
