Foamcore Underground Drainage Piping System

KOTHARI KWIKDRAIN Foamcore UDS Multi-layer Pipes are an advanced drainage and sewerage solution made with Hi-Tech European multilayer technology. Their unique three-layer structure provides high strength and firmness while keeping the pipes lightweight and cost-effective. Ideal for housing and government projects, they serve as a superior alternative to traditional solid wall PVC or concrete pipes.

Composition

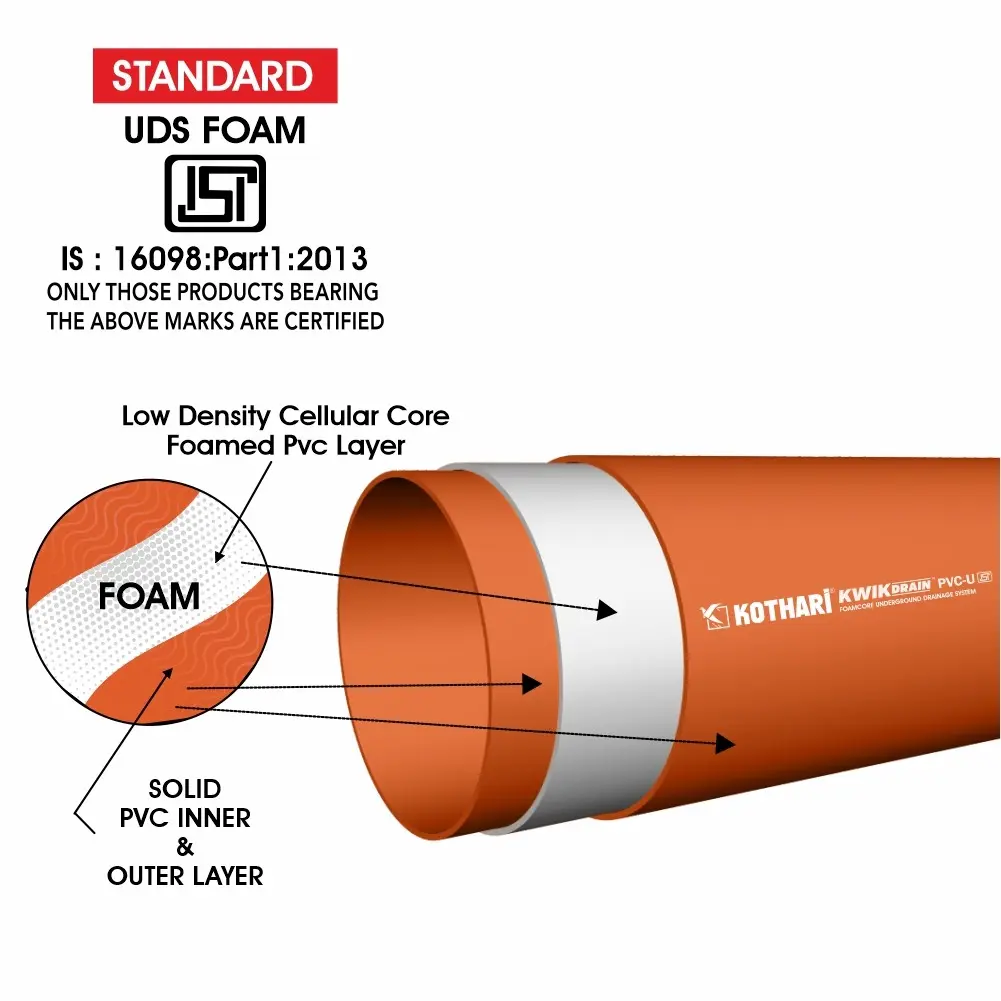

Multilayer pipes having outer and inner layers of conventional PVC and middle layer of foamed PVC.

Available Sizes

Pipes : 110, 160, 200, 250 & 315 mm

Fittings : 110, 160 & 200 mm



Compare
Add to wishlist
Category:
Description

STANDARDS OF KWIKDRAIN FOAMCORE PIPE

Pipes Fittings
Size (mm) Standard End Connection Size (mm) End Connection
SN 2 – 160, 200, 250, 315 IS 16098 (Part 1) Elastomeric Sealing Ring Joint & Solvent Joint 110, 160 & 200 Elastomeric Sealing Ring Joint & Solvent Joint
SN 4 – 110, 160, 200, 250, 315
SN 8 – 110, 160, 200, 250, 315
SN 16 – 110, 160, 200, 250, 315

DIMENSIONS

Nominal Size (Outside Diameter) Mean Outside Diameter Ring Stiffness
Min (mm) Max (mm) SN 2 (SDR 51) SN 4 (SDR 41) SN 8 (SDR 34)
Min (mm) Max (mm) Min (mm) Max (mm) Min (mm) Max (mm)
110 110.00 110.40 – – 2.80 3.30 3.20 3.70
160 160.00 160.50 3.20 3.70 4.00 4.60 4.70 5.40
200 200.00 200.60 3.90 4.50 4.90 5.60 5.90 6.70
250 250.00 250.80 4.90 5.60 6.20 7.00 7.30 8.30
315 315.00 316.00 6.20 7.00 7.70 8.70 9.20 10.40
Additional information
Color Magenta with brown colour designing , Brown with Yellow Designing , Orange with yellow designing , Yellow with black designing , orange with Hanuman ji face , Green with God face , Green tone , Blue tone , Canvasite Green
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Foamcore Underground Drainage Piping System”

Your email address will not be published. Required fields are marked *

Attachment

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Features & Benefits
  • Multi-layer Construction: Outer and inner layers ensure high load-bearing capacity, while the middle layer adds firmness to the structure.
  • Light weight: Easier to handle, transport, and install.
  • Leak proof: Advanced Self-fit and Ring-fit systems provide secure connections that prevent leakage.
  • Smooth Inner Surface: Reduces friction, allowing free and efficient flow of sewage and waste.
  • High Impact Strength: Withstands underground stress and heavy loads without damage.
  • Corrosion and Rust-Proof: Resistant to chemical reactions and rust, ensuring long service life in harsh conditions.
  • Versatile: Ideal for gravity drainage, sewerage flow, and transportation of soil and waste discharge.
Applications

Housing and government projects
