Description

K-Gol emitting pipe as per IS : 13488:2008

Outside Dia (mm)	Inside Dia (mm)	Nominal tolerance on ID (mm)	Class – 1 (1 kg/cm²)			Class – 2 (1.25 kg/cm²)			Class – 3 (2.5 kg/cm²)			Class – 4 (4 kg/cm²)
Outside Dia (mm)	Inside Dia (mm)	Nominal tolerance on ID (mm)	MIN	MAX	AVG	MIN	MAX	AVG	MIN	MAX	AVG	MIN	MAX	AVG
12	10.5	0.2 (+)	0.40	0.50	0.45	0.60	0.70	0.65	0.80	1.00	0.90	1.10	1.30	1.20
16	14.2	0.2 (+)	0.50	0.60	0.55	0.70	0.90	0.80	1.00	1.20	1.10	1.30	1.50	1.40
20	18	0.2 (+)	0.70	0.80	0.75	0.90	1.10	1.00	1.20	1.40	1.30	1.50	1.70	1.60

Max. permissible length for K-Gol NPC (Mtr) at 0 level

S.N.	Dripper spacing (cm)	2 lph			4 lph
S.N.	Dripper spacing (cm)	12 mm CL-2	16 mm CL-2	20 mm CL-1	12 mm CL-2	16 mm CL-2	20 mm CL-1
1	20	31	52	80	19	30	51
2	30	40	68	105	25	40	67
3	40	49	82	126	31	52	80
4	50	56	95	145	36	60	93
5	60	63	106	163	40	67	104

Ordering guide for K-Gol emitting pipe

Product	Inline type	Inline size (mm)	Dripper discharge (lph)	Dripper spacing (cm)	Inline class	Std. roll length (Mtr)
K-Gol Emitting Pipe	NPC	12	2 / 4	20 to 120	CL-1 / CL-2 / CL-3	500
	NPC	16	2 / 4	20 to 120	CL-1 / CL-2 / CL-3	500
	NPC	20	2 / 4	20 to 120	CL-1 / CL-2 / CL-3	400
	PC	16	2.5 / 4.5 lph	20 to 120	CL-1 / CL-2 / CL-3	500

Additional information

Color	Magenta with brown colour designing , Brown with Yellow Designing , Orange with yellow designing , Yellow with black designing , orange with Hanuman ji face , Green with God face , Green tone , Blue tone , Canvasite Green

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Dripline K-Gol PC”

Attachment

pdf

Download

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Features & Benefits

Pressure Compensation Mechanism: Delivers uniform flow regardless of inlet pressure variations or slopes.
Wide Labyrinth: Ensures smooth, clog-resistant water flow & prevents blockages.
Silicon Diaphragm & Turbulent Flow Path: Enhances performance and durability.
Multiple Outlet Holes: Ensures smooth inline operation & steady drip irrigation.
Smooth Inner Surface: Reduces friction losses & improves water distribution efficiency.
Special-Grade LLDPE Material: Provides high flexibility, strength, and UV resistance.
Round PC Dripper with Lowest CV: Ensures maximum uniformity in water distribution.
Manufactured with Advanced Israeli Technology: Ensures precision and uniformity in water delivery.

Applications

Ideal for undulating terrains & slopes requiring pressure-compensated flow.
Best for high-value crops, including greenhouse, nursery, and landscape irrigation.
Recommended for subsurface drip irrigation (SDI).

Hot

Click to enlarge

Back to products

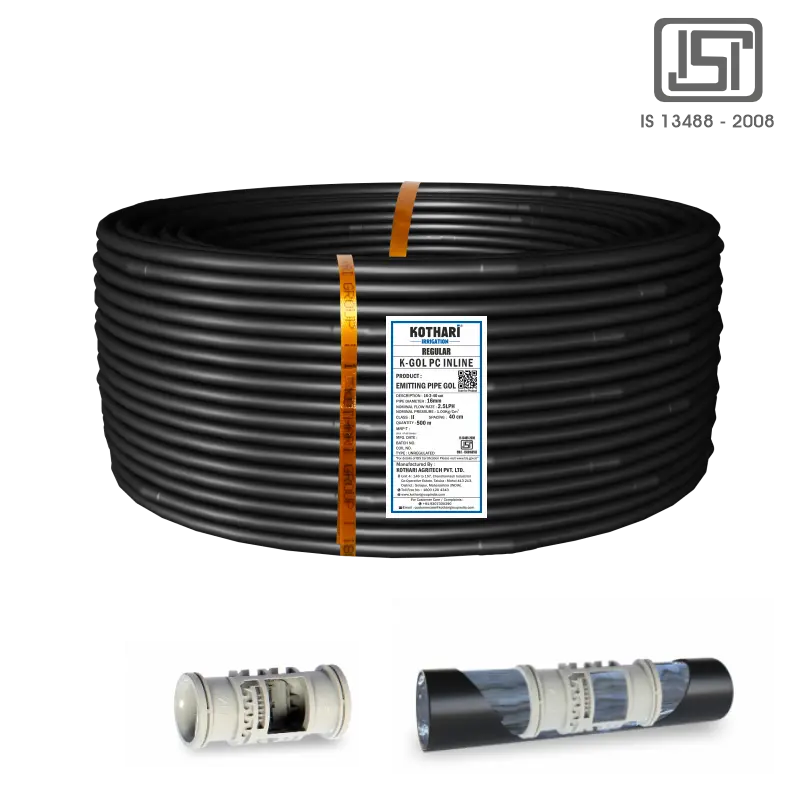

Dripline K-Gol PC

Name: Dripline K-Gol PC
SKU: 16794
Availability: InStock

₹4,000.00

Available Sizes
Diameters: 16mm
Dripper Spacing: 20 cm, 30 cm, 40 cm, 50 cm, 60 cm

Technical Specifications
Flow Rates: 2.5 lph, 4.5 lph
Operating Pressure: 0.8 to 3.5 kg/cm²

Operative Guidelines:

Requires 130 micron filtration for optimal results.
Use Kothari drip fittings and a continuous-acting air valve.
Use a continuous-acting air valve on the sub-main.
Use collecting sub-main for use in SDI.
Always use NRV on the mainline.

Color	Clear
